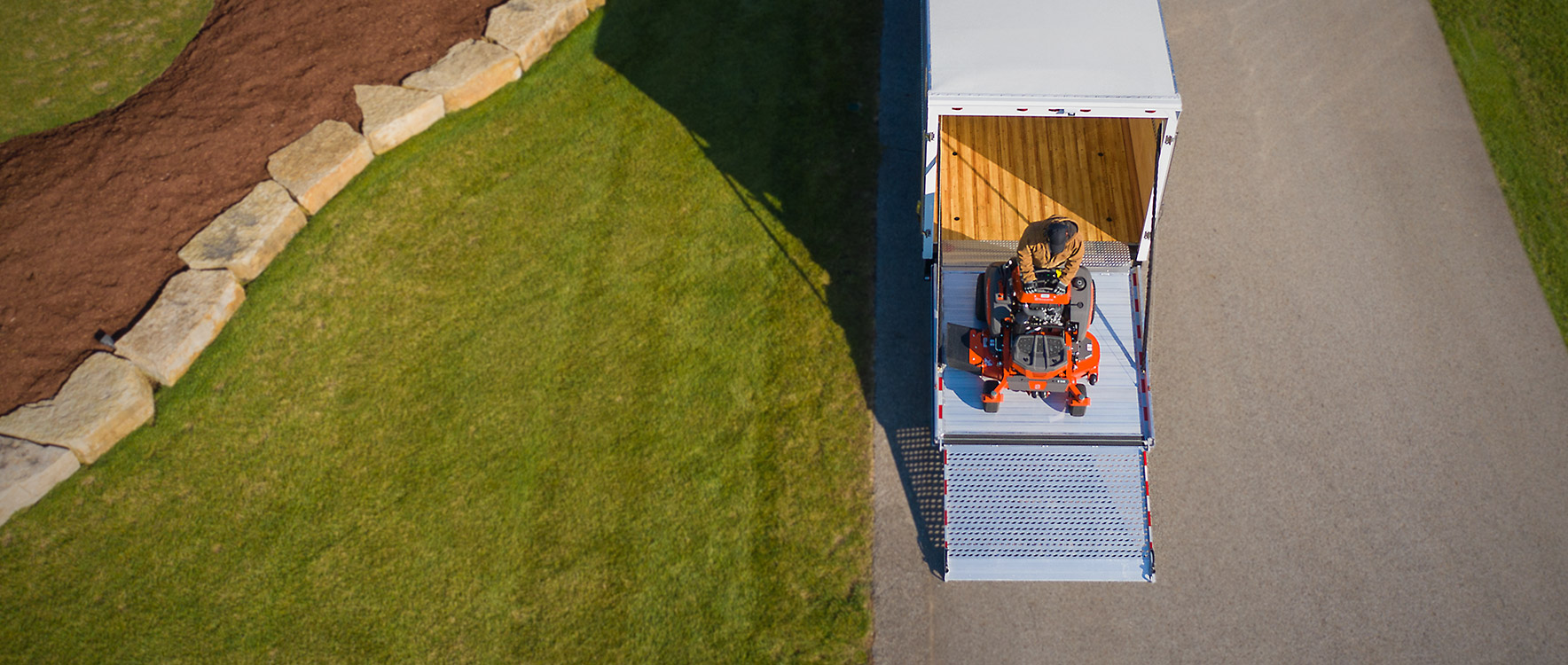

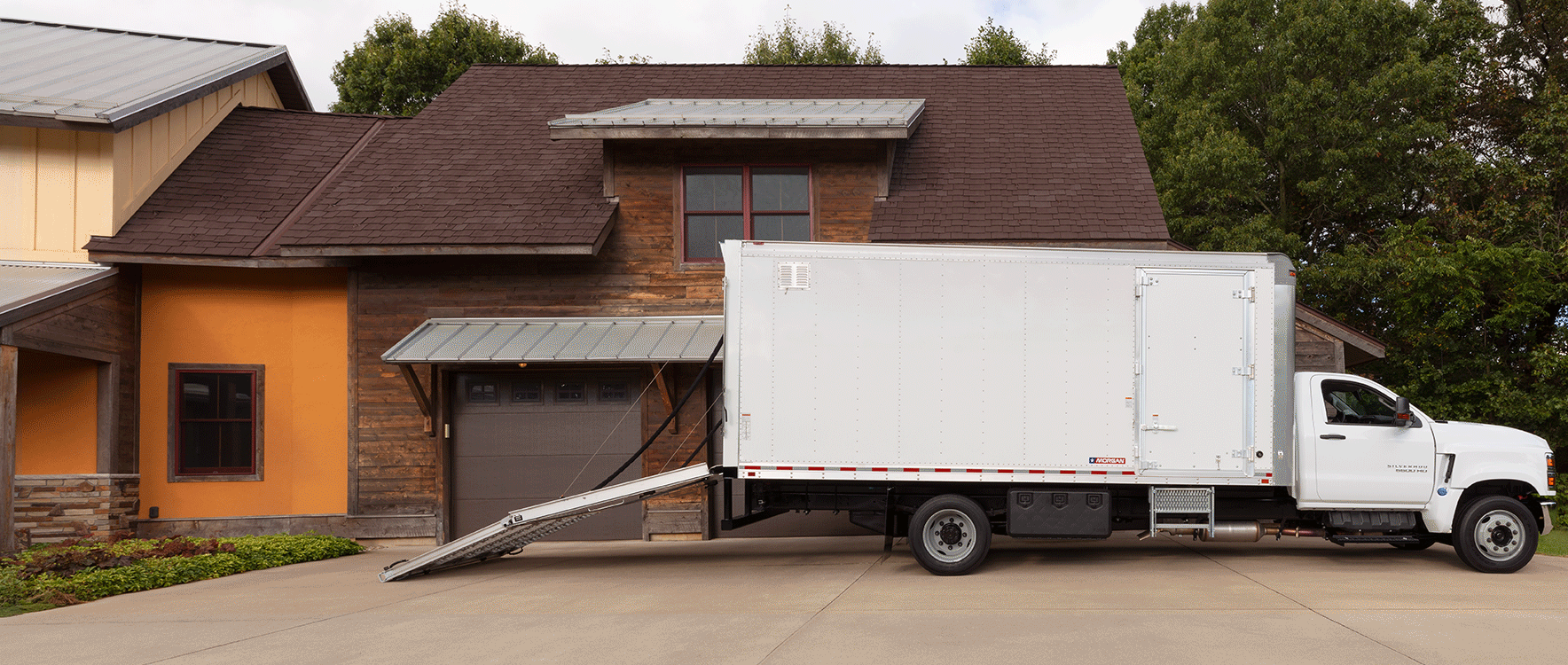

Dry Freight Proscape-Van driving mower down ramp door
Dry Freight Proscape-Van at motocross track unloading motocross bikes

Morgan's Proscape-Van body was developed to meet the needs of the landscape industry and it does just that! Whether you want to increase your cargo space, secure your equipment or increase profitability by improving your productivity – our body does it all. And it's not just for landscapers!

Furniture movers, appliance and parcel/package delivery, caterers, snack and vending suppliers, party and event planning, linen delivery, and uniform delivery companies are just A FEW of the service providers that will appreciate the easy access and efficient movement in and out of the cargo area – that a Proscape-Van body provides. Proscape-Van's industry-leading ramp/door combination also eliminates the need for an extra trailer, or inefficient internal and bulky external dovetail.

And added security is also provided with dual, keyed stainless steel swing arm locking mechanisms. Depending on your specific chassis make and model, wheelbase, and body length combination, the Proscape-Van door/ramp platform can handle loads weighing up to 2,500 lbs., *which includes most commercial mowers and service equipment.



Features

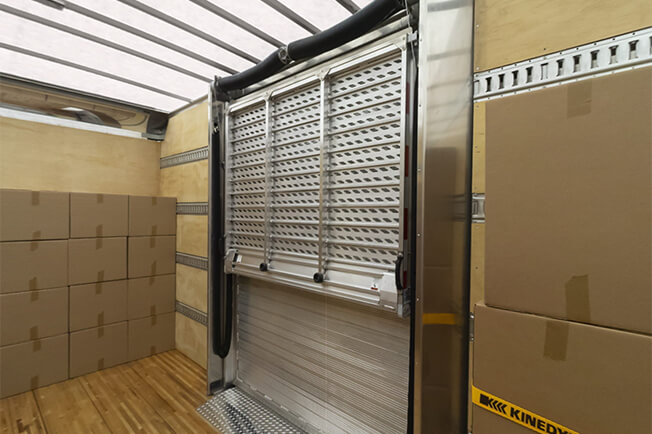

Dry Freight Proscape-Van ramp door opening and closing

Proscape-Van's door/ramp opening is 79 ¼" high by 88" wide – and offers plenty of room for the loading/unloading of commercial mowers and service equipment. The keyed swing bar locking rod system keeps equipment secure while also being easy to open. A spring tensioner also supports easy opening and closing.

Dry Freight Proscape-Van front corner cap
Dry Freight Proscape-Van front frame

Improved fuel efficiency saves you money. That's why Morgan's Proscape-Van bodies feature aerodynamic front-end design that reduces wind-resistance and decreases fuel-consumption. Morgan's patented poly-tuff corners also add up to greater durability and resistance to the elements – both of which mean better protection for your payload!

Dry Freight Proscape-Van interior roof

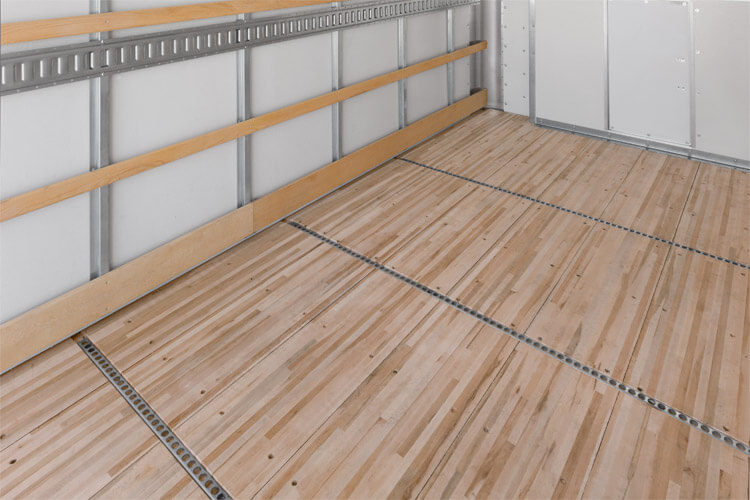

Morgan's sub-frames deliver light weight AND uncompromised strength. All-steel sub-frame components and 12-inch on-center support placement, provide strength and durability where it's needed. Corrosion-resistant extruded steel 3" I-beam cross-members and 4" longrails reduce overall weight. And pre-undercoated floorboards provide even greater protection against the elements.

Dry Freight Proscape-Van rear frame

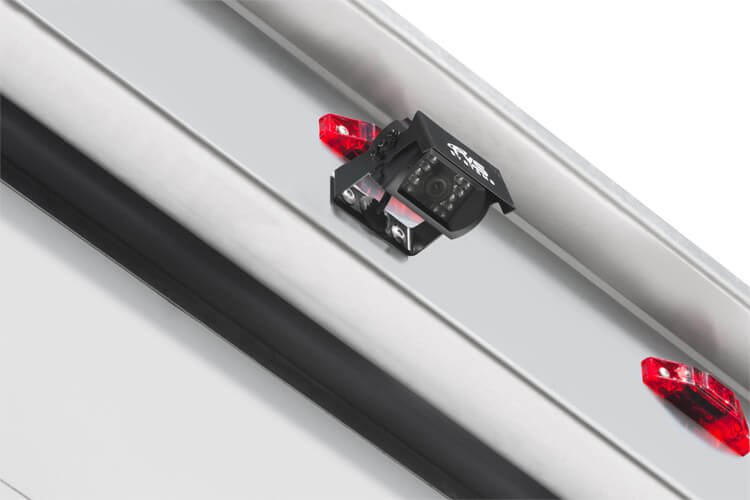

The rugged galvanealed steel rear-frame, and durable imron-white finish help to protect your body (and your cargo) from the elements! The innovative design of the built-in header, rain deflector and clearance light guard, provide added damage protection. And strategically placed curb and roadside grab-handles, provide a safer, team-friendly work environment! And don't forget – Morgan offers a variety of options, including rear view cameras, and custom-lighting – to suit your unique needs.

Dry Freight Proscape-Van rear bumper

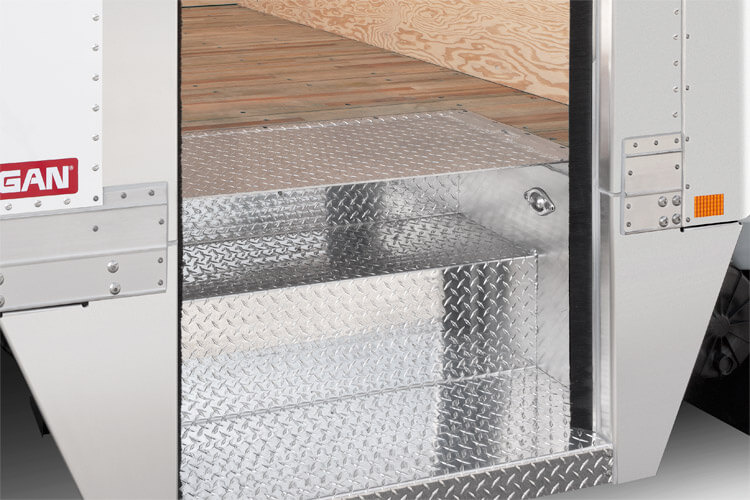

Moving in and out of the cargo area is made easier with Morgan's 5-inch, pooched-surface structural bumper and textured closure plate. Improved traction supports greater efficiency and safety! And a wide range of bumper configurations – including step, drop-step, intermediate steps, under-ride bumpers, walkramps, and a variety of bumper blocks – are available to make your job even easier!

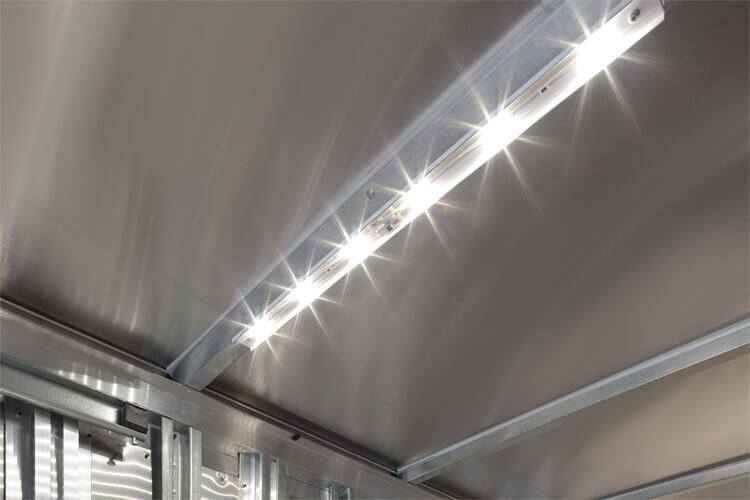

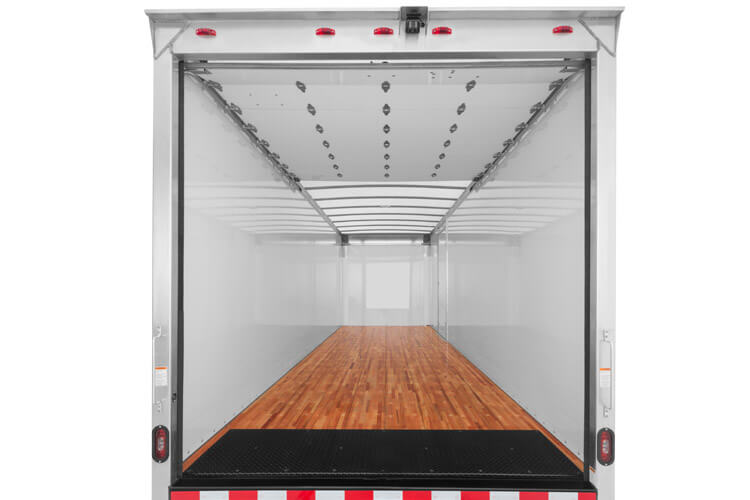

Dry Freight Proscape-Van interior lighting
Dry Freight Proscape-Van rear lighting

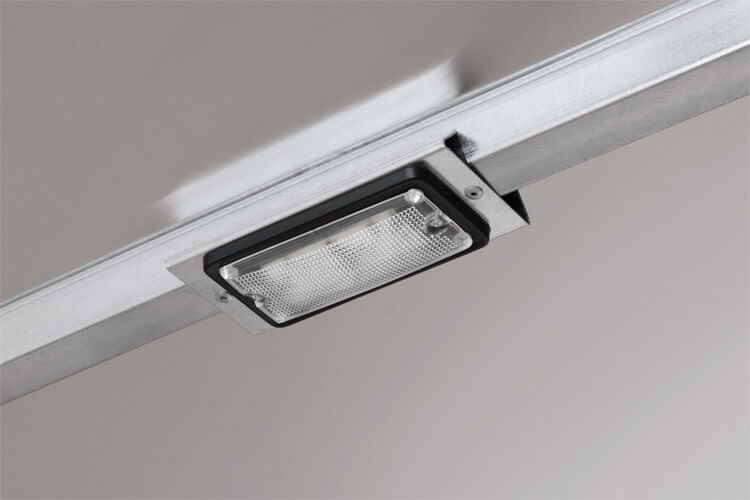

Visibility in AND outside of the cargo area is easy with Morgan's range of LED lighting packages. Bright LED (FMVSS-compliant) lighting includes a dome-light with indicator-switch mounted in the cab, exterior sealed clearance lights, corner cap, side top rail and rear header lights – as standard on all bodies.

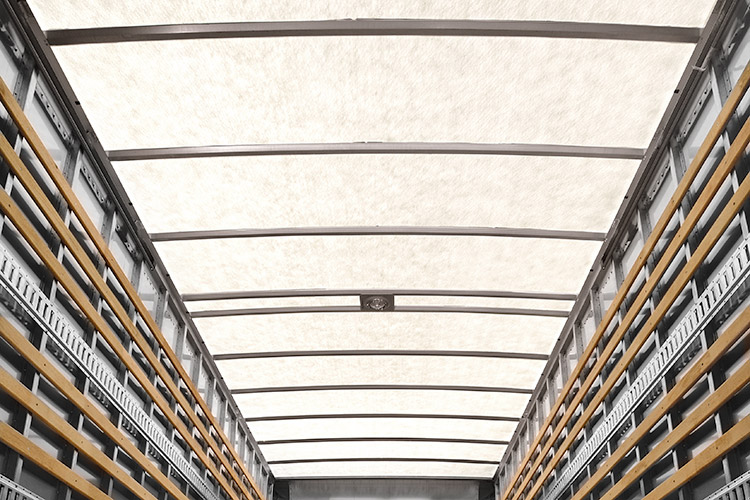

Dry Freight Proscape-Van roof

Morgan's Proscape-Van roofs use a single piece of .032" mm crowned aluminum sheeting to minimize seams where water tends to infiltrate. The gentle bow is reinforced with anti-snag supports, positioned 24-inches on-center, to provide added strength without adding unnecessary weight. Water sheds quickly so there's less opportunity to compromise cargo. An optional translucent roof is also available to take full advantage of ambient light.

Wall Construction

Aluminum, Morganplate or Fiberglass Reinforced Plywood wall construction ensures solid choices when it comes to the functional qualities you prefer – AND the image you want your Dry Freight, box, straight-truck or van to present! It's easy to see how Morgan earned its reputation for innovative design, quality construction and superior customer service! There's NoBODY Like Morgan!

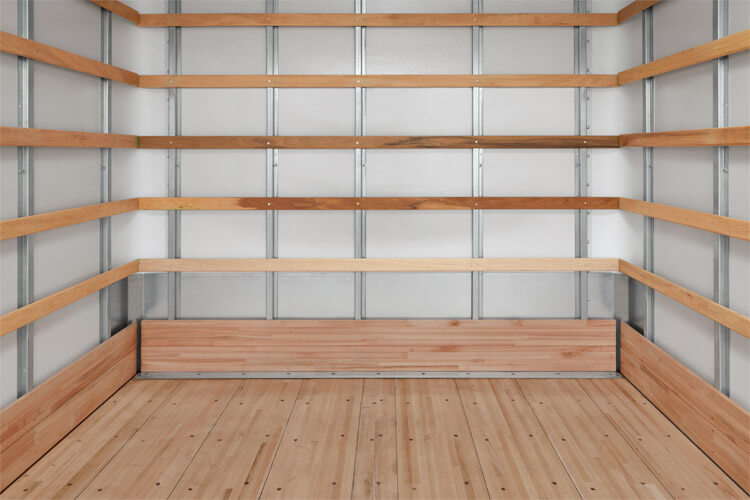

Morgan Dry Freight aluminum wall construction

Aluminum Wall Construction

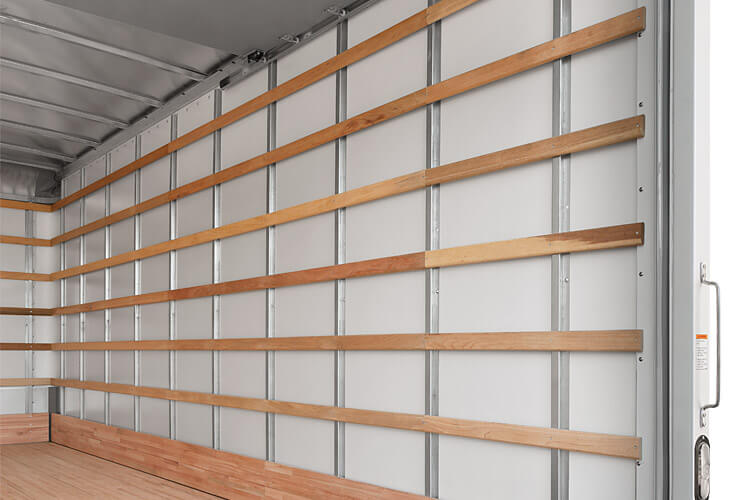

Affordability and lightweight are key considerations when it comes to selecting aluminum wall construction for your box, straight-truck or van body, because light weight adds up to reduced fuel consumption. But light weight doesn't mean compromised strength when you have Morgan ingenuity built-in! Extruded aluminum top and bottom rails with 1 3/8" deep galvanized z-shaped steel vertical posts installed 16" on-center, provide superior structural support. And the .040" aluminum skin exceeds industry standards. Aluminum is also corrosion-resistant, making it an excellent choice when it comes to protecting your cargo from the elements year-after-year.

Morgan Dry Freight morganplate wall construction

Morganplate Wall Construction

Morganplate delivers a unique combination of strength and versatility for those who recognize the value in having your body perform double-duty as both a delivery or service vehicle AND an excellent marketing tool! Composite construction – consisting of two external skins thermally bonded to a high-density polyethylene core, makes Morganplate strong, durable, energy absorbent and impact resistant! Innovative design and construction helps to protect your valuable cargo mile-after-mile. On the outside, Morganplate's clean, uninterrupted surface is a perfect canvas for custom-graphics. With Morganplate, beauty is more than skin-deep!

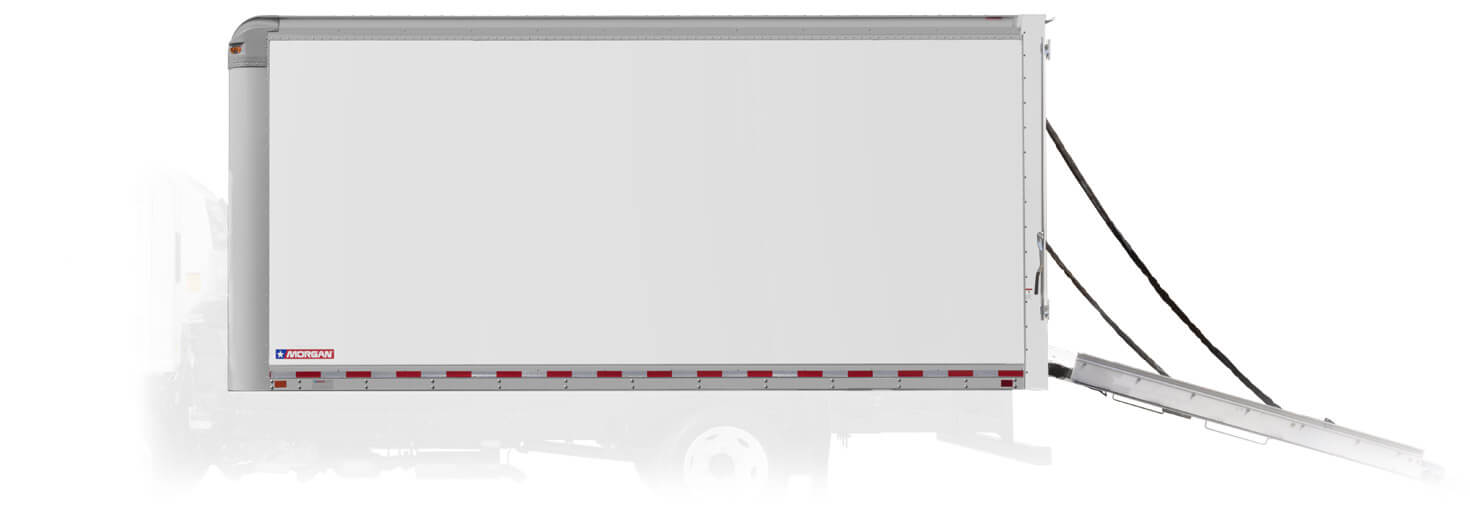

Morgan Dry Freight FRP wall construction

FRP Wall Construction

Morgan's FRP panels includes a 3/8" plywood core, entirely encased in polyester resin reinforced with high-strength woven fiberglass. It's tough. It's durable. And it out-performs the competition when it comes to its ability to resist dents and scratches – inside and out. The smooth exterior surface is also a great place to display custom-graphics and promote your business everywhere you go! Morgan even offers custom paint and decal installation for your convenience!

Proscape-Van Specifications

Media Center

Proscape-Van 30 Second Highlight



Proscape-Van Ramp Door



Proscape-Van



Morgan Product Line-Up



How to Build a Dry Freight



Demountable Concepts

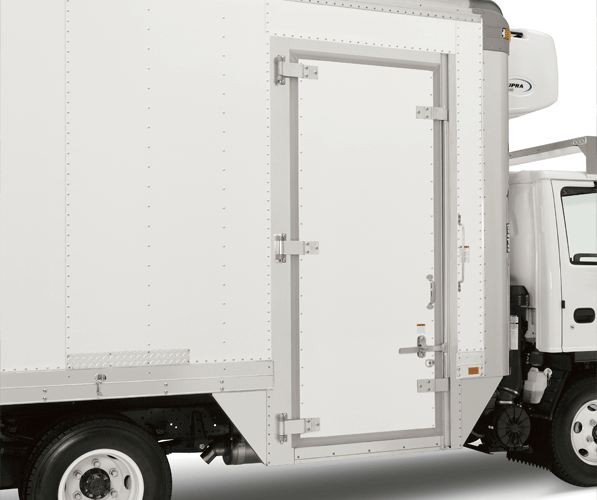

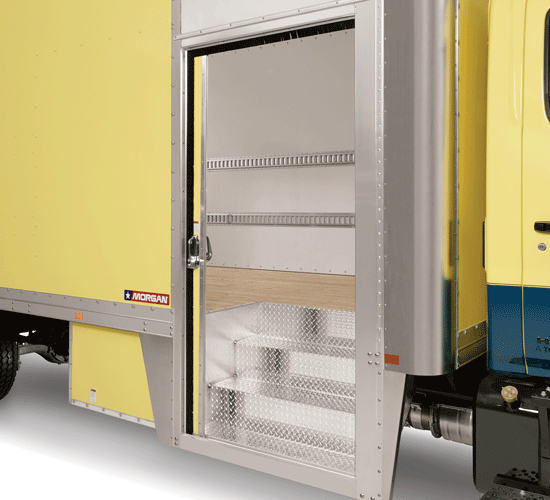

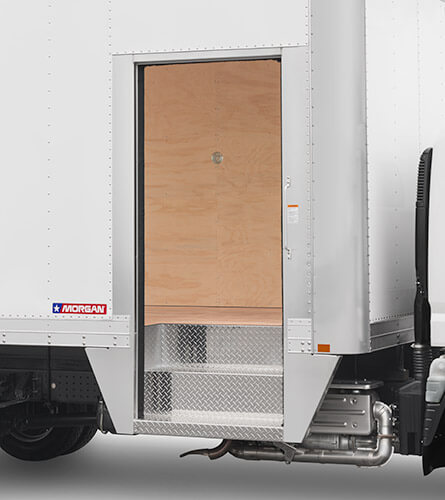

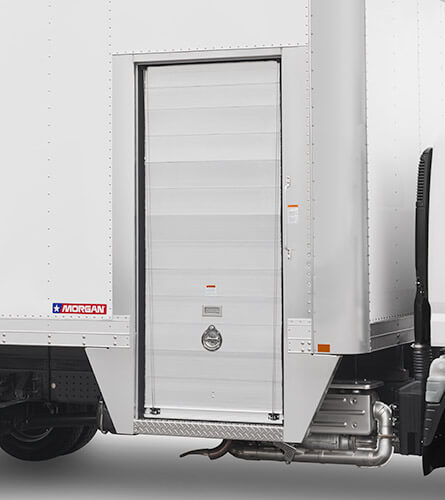

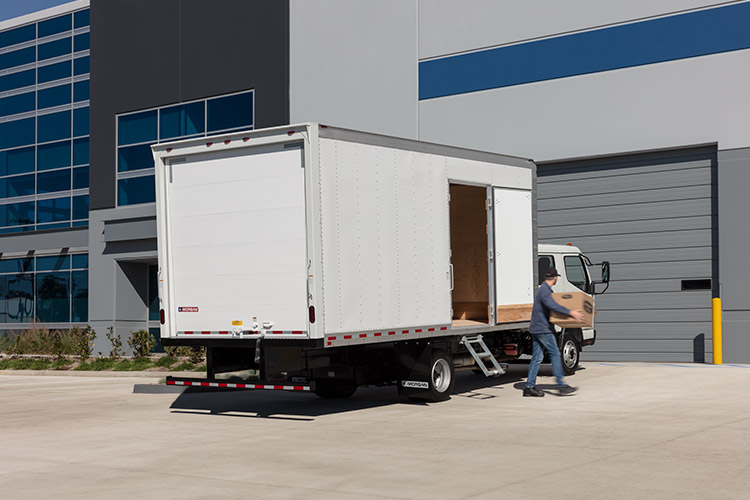

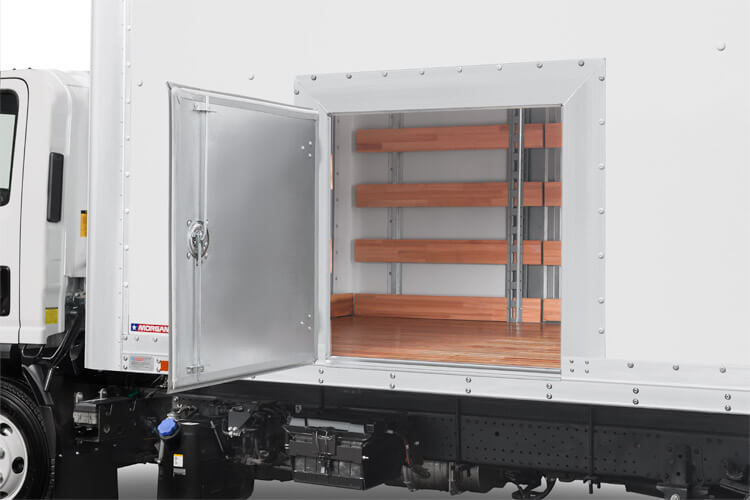

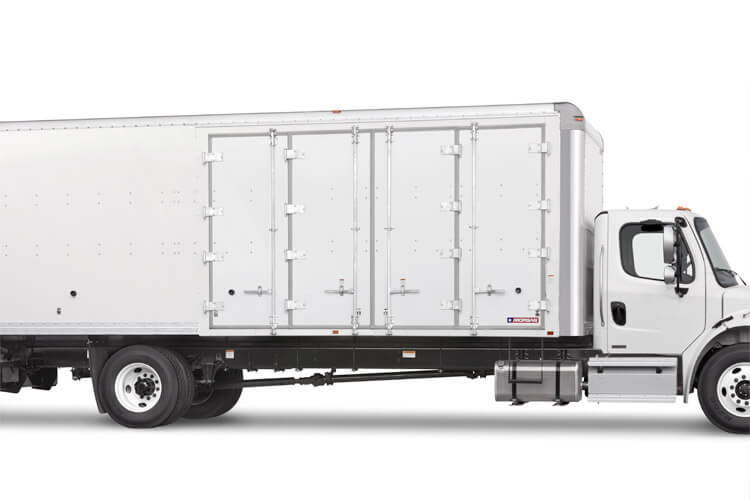

Side Access Options



Use your mouse or finger to rotate the interactive 360 tour. Pinch/scroll to zoom in and out.

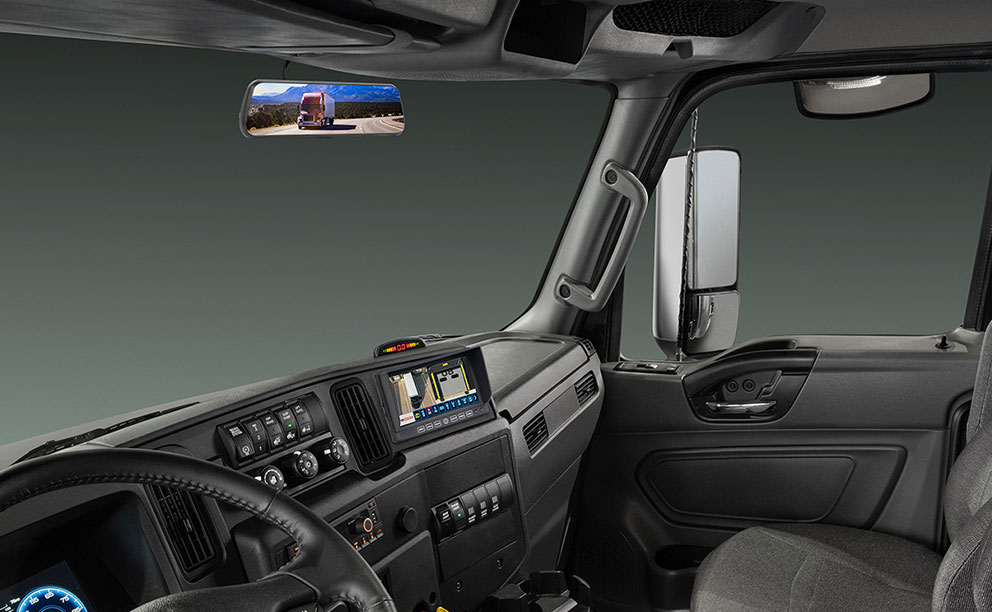

Protect your drivers, equipment and cargo with Situational Awareness Packages offered by Morgan Truck Body.

Enhanced Technology

Situational Awareness Packages

Improve Visibility › Enhance Safety › DVR Incident Recording

Situational Awareness Packages provide ENHANCED VISIBILITY inside and outside of the vehicle. All at the driver's fingertips.

Learn More Information

Literature

Click on any brochure below to download and view our current product literature to learn more about standard and optional features and gain valuable information for your purchasing decision.

Dry Freight: Proscape-Van

Find out how our ramp-door equipped Proscape-Van satisfies everyday needs – AND the unique requirements - of professional service-providers, and outdoor-enthusiasts alike!

View Brochure
How to Build a Dry Freight

Building the best dry freight body for YOUR business is easy when you start with Morgan's "How To" guide. You have questions… We have the answers!

View Brochure

Vocations

  • Final Mile/Last Mile
  • Home Delivery
  • Big Box/Appliance Delivery
  • Parcel/Package Delivery
  • Furniture/Moving
  • Rental Fleets
  • Municipalities
  • Landscape
  • Construction
  • Glass Hauling
  • Airport Services
  • Catering
  • Snack/Vending
  • & Many More

Options

*For certain chassis makes, models, wheelbases, and body length combinations, the Proscape-Van ramp is rated at 1,800 lbs. Please check with your Morgan sales representative for the Proscape-Van door/ramp platform loading capacity for your specific vehicle.
